Key Features :

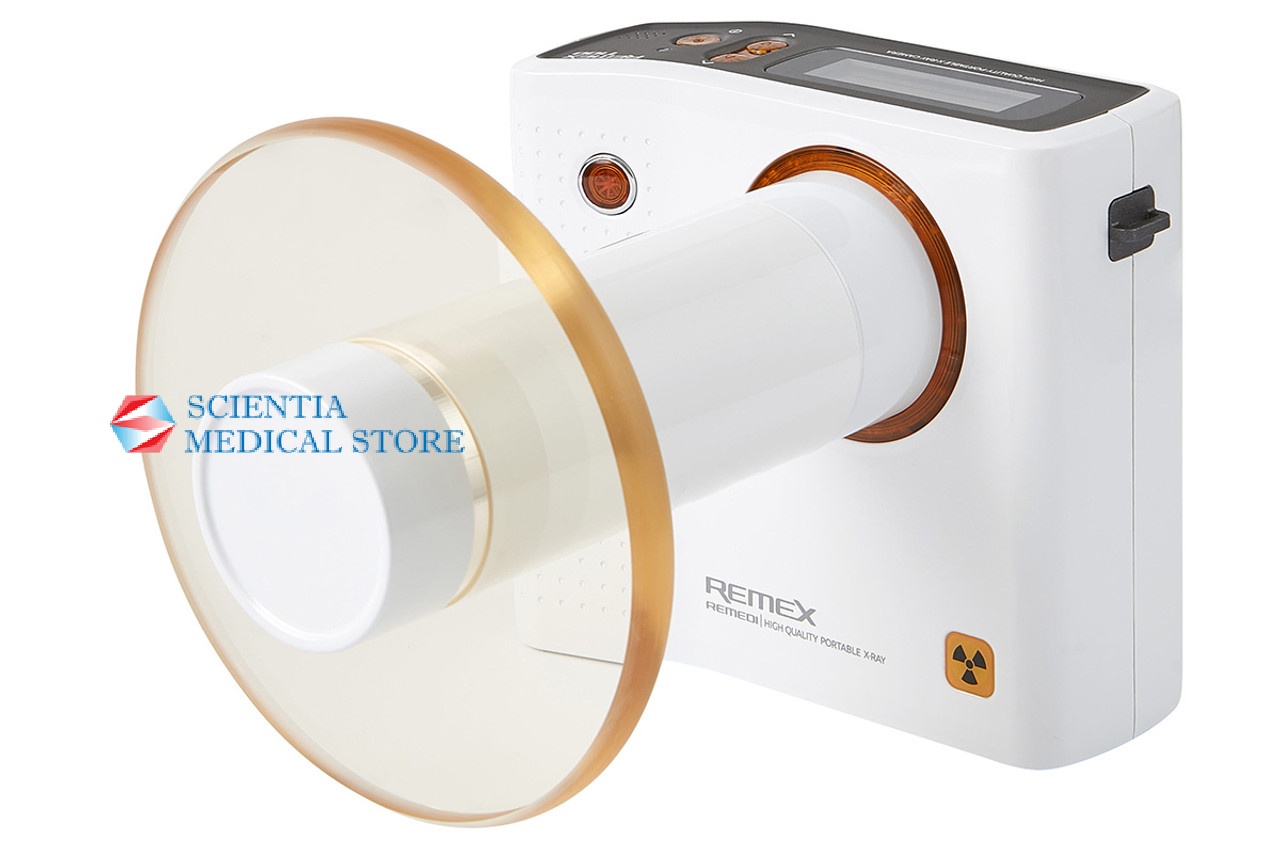

REMEX-T(K)100 Portable X-ray Equipment is intended to be used by trained dentists and dental technicians as an extra-oral x-ray source for producing diagnostic x-ray images using intra-oral image receptors. Its use is intended for adult, child and pregnant woman subjects.

The owner/operator is responsible for verifying continued compliance exposure rates, leakage radiation, alignment of the useful beam, and the calibration of kVp and mAs. Annual verification by a qualified service technician may be required by federal law. Compliance with applicable statutory and regulatory requirements is the responsibility of the owner/operator. Consult local, state, and/or federal agencies regarding specific requirements and regulations applicable to the use of this type of medical electronic equipment.

Ensure the adaptor is unplugged before attempting to clean. To make sure that power is off for REMEX-T(K)100 while cleaning. Use a non-alcohol based disinfectant only - wipes or a cloth dampened with liquid or spray. REMEX-T(K)100 and the accompanying adaptor are not designed to be subjected to any kind of sterilization procedure. REMEX-T(K)100 is not designed to be used to sterilize anything else.

Specification :

• Ergonomic camera grip design
• Lightweight - 4.7lbs
• Works with digital sensors, film, phosphor plates
• 0.4mm focal spot produces optimal, high-resolution images
• Low patient dosage
• Internal shielding to protect operator
• Long battery life - 400 exposures per single charge
• 2 Yr Manufacturer Warranty

Mechanical Specifications

• Anode Angle: 12.5 degrees
• Total Filtration: Min. 1.5mm
• Inherent Filtration: Min. 1.0mm
• X-ray Coverage: Ø60mm at SDD 200mm

Dimensional Specifications

• Main Body Size: 165 x 60 x 155mm (WxDxH)
• Cone Size: 175 x 60mm (LxW)
• Backscatter Shield Size: 160 x 120mm (ØxD)
• Weight: 4.7 lbs Including Cone & Shield

Power Requirement Specifications

• Rechargeable Battery: DC 11.1v, 1500mAh
• Charger Input: 100~240VAC, 50~60Hz, 1.0A
• Charger Output: 12.6Vdc, 1500mAh

5 YEARS WARRANTY on Battery

• Fully Portable Handheld X-ray.
• Ergonomic camera grip design prevents
operator fatigue.
• Lightest weight of only 4.7lbs.
• 70kV provides the best IO x-ray image quality.
• Long battery life, 400 exposures in one charge. A quick
15-minute recharge for full FMX imaging.
• No wall construction needed.
• .4mm Focal Spot
• Easy to change Spare Battery
